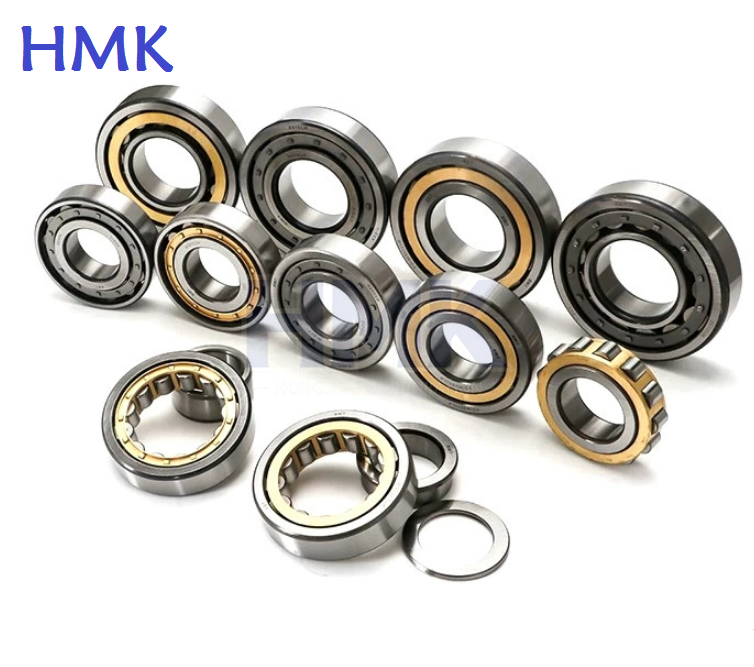

HMK Cylindrical roller bearings are manufactured with precision forging and superfinishing grinding, consisting of inner ring, outer ring, cylindrical rollers and cage. Linear contact between rollers and raceways delivers superior radial load capacity and rigidity for medium & high-speed operation.

Full standard range: NU, N, NJ, NUP, NF, NN, NNU compliant with ISO & GB standards. Precision grades P0/P5/P4 available, in stock & custom machining supported for diverse industrial harsh conditions including dusty, dry & medium-temperature working scenes.

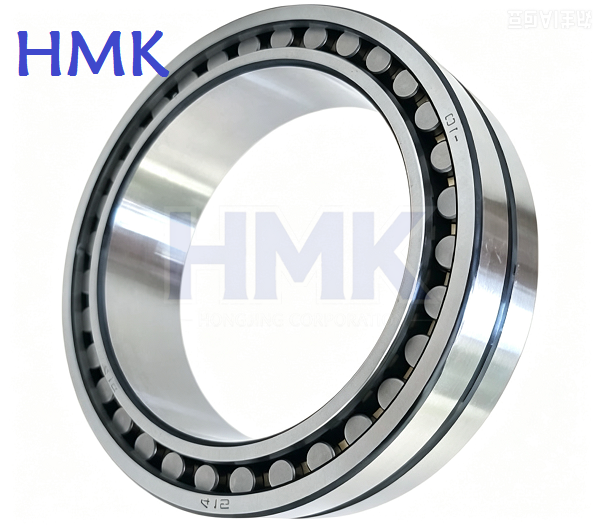

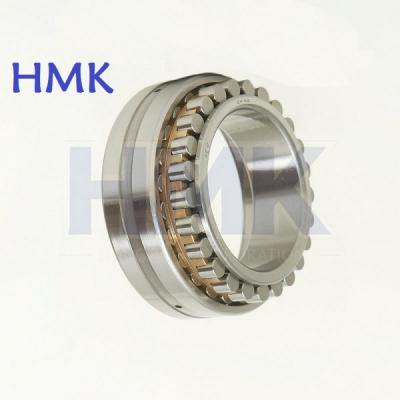

NN Series Single Row Cylindrical Roller Bearings Product Details

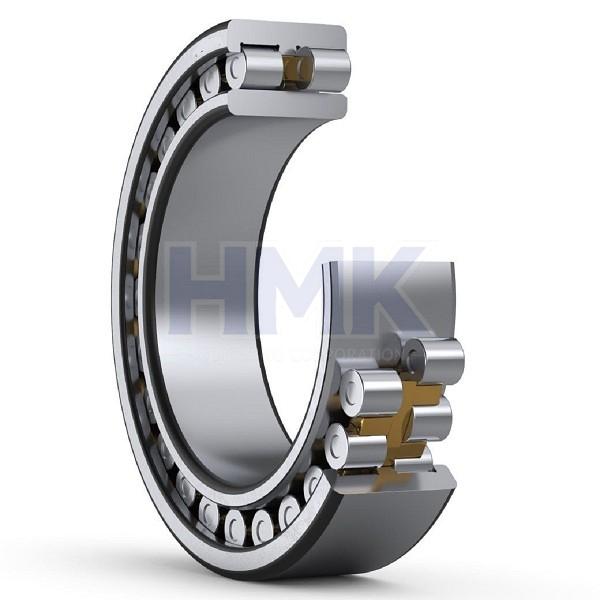

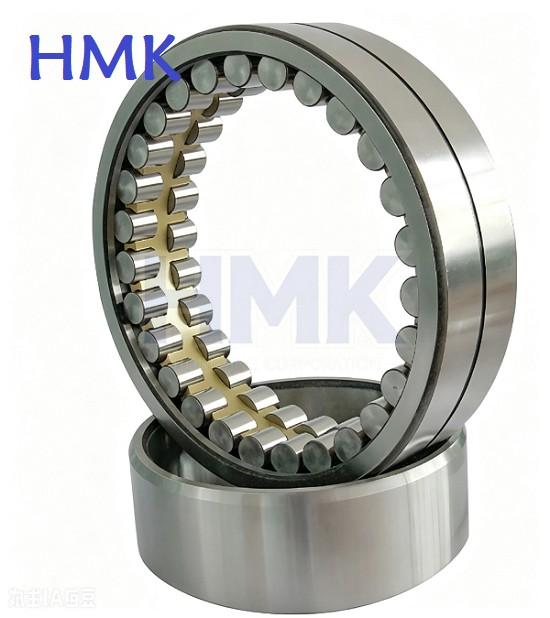

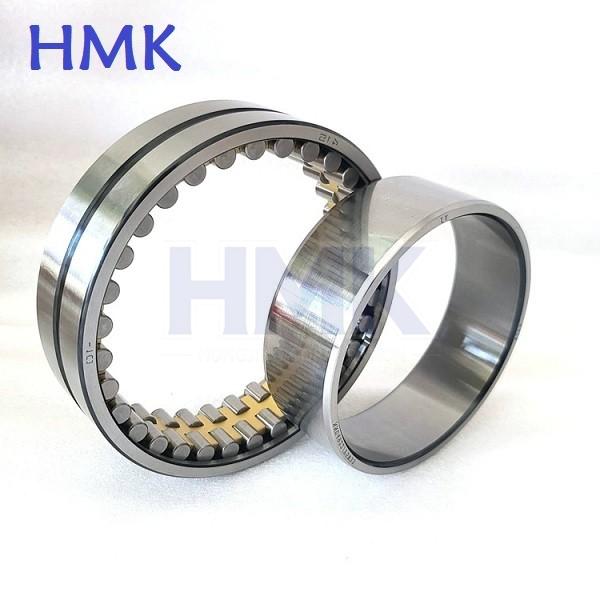

1. Structure: Double row roller design, outer ring double ribs, inner ring no ribs. Inner ring and roller assembly are separable

2. Performance: Super high precision, ultra-low runout, strong radial rigidity, support continuous high-speed rotating operation.

3. Optional Type: NNU K (tapered bore 1:12) for clearance adjustment and spindle preload.

4. Cage Option: Stamped steel cage, solid brass cage for high-speed & long-life working.

5. Application: CNC machining center spindle, precision grinding machine, high-end printing machinery, precision textile equipment.

Material & Production Process

• Ring & Roller Material: Premium GCr15/AISI52100 vacuum degassed bearing steel, carburizing & quenching heat treatment for stable metallurgical structure.

• Precision Machining: Raceway superfinishing & roller mirror grinding, dimension tolerance strictly follow ISO norms, clearance inspected piece by piece before delivery.

• Surface Finish: Standard black oxide, nickel plating & phosphating available for anti-rust requirement.

Main Applications

✅ General Machinery: Electric motors, gear reducers, vacuum pumps, centrifugal fans & compressors

✅ Mining & Metallurgy: Rolling mill, stone crusher, mineral conveyor, heavy-duty mine roller

✅ Construction Machinery: Loader, crane, excavator travel wheel, hydraulic motor

✅ Precision Equipment: CNC spindle, grinding machine, textile & plastic extruder

✅ Wind Power & Rail Transit: Wind turbine gearbox, railway transmission box, large industrial drive unit
