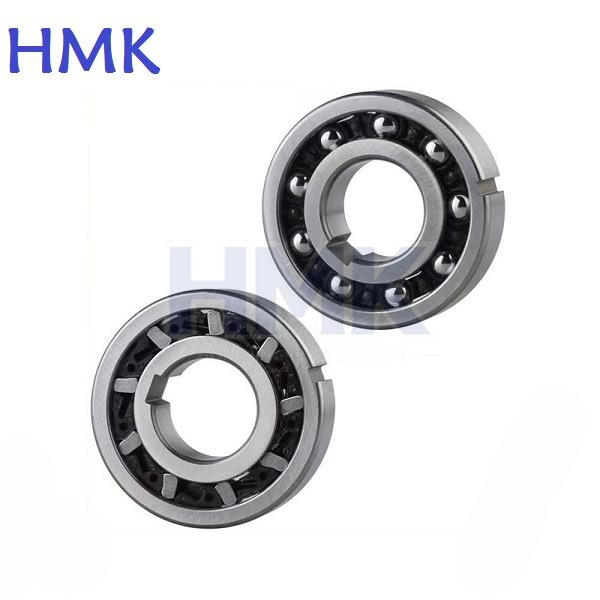

HMK one way freewheel clutch bearing (also called overrunning clutch, backstop clutch, non-reversing clutch) is a core industrial transmission component used for unidirectional torque transmission and reverse free overrunning. It is widely adopted for anti-reverse locking, intermittent drive, speed difference overrunning and mechanical backstop protection in automation equipment, reducers and conveyor systems.

According to internal mechanism and structural design, HMK freewheel clutches are divided into two core categories:

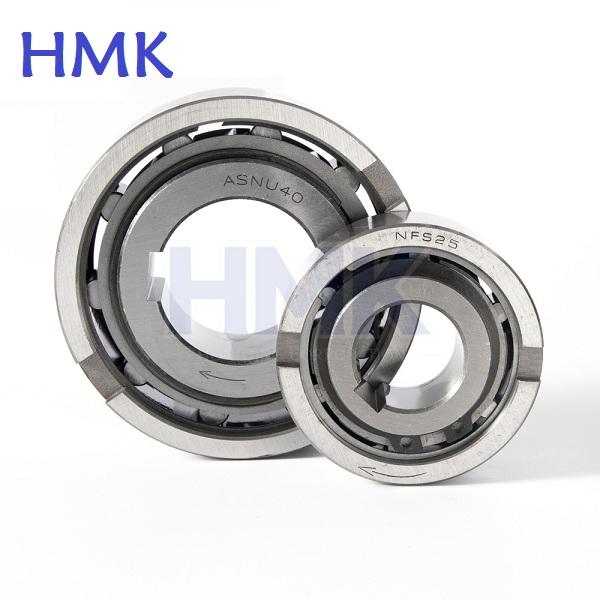

• Roller Type Freewheel (ASNU / NFS / TFS)

Pure overrunning roller structure, no built-in support bearing, requires external matching bearing installation. Low running resistance, fast locking response, suitable for high-frequency overrunning scenarios.

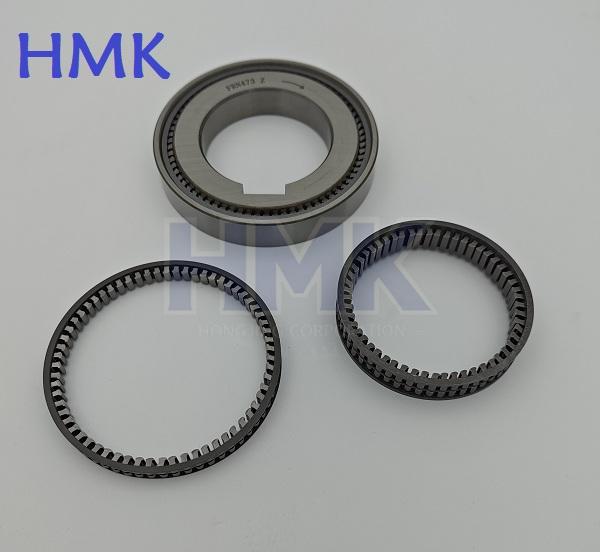

• Sprag Integrated Freewheel (FDN / FRN)

Integrated double ball bearing + sprag locking structure, one-piece assembly without extra bearing matching. High torque resistance, strong impact resistance, plug-and-play installation.

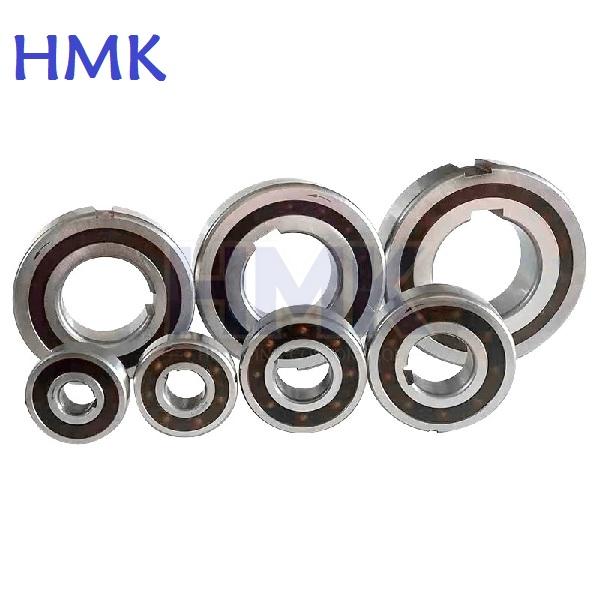

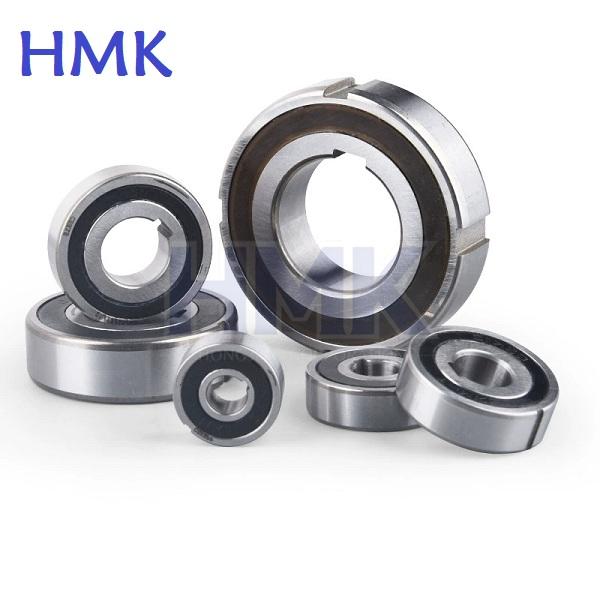

• Compact Small Freewheel (CSK / HF)

Miniature one-way bearing for light-load small automation equipment, low cost and versatile specifications.

All HMK freewheel clutch units adopt high-purity bearing steel, precision quenching and raceway grinding process. Internal roller/sprag components are heat-treated for high hardness and wear resistance. Strict dimensional tolerance control ensures full interchangeability with international Stieber, GMN standard sizes. Factory pre-lubricated and finished, stable locking performance, no slipping under rated load.

Core Advantages

1. Dual Mechanism Coverage

Covers roller fast-response series and sprag high-torque series, fully adapt high-speed overrunning and heavy-load anti-reverse working conditions.

2. Accurate One-Way Locking

Instant unidirectional torque transmission, zero slipping under rated load; smooth free overrunning in reverse direction.

3. Multiple Sealing Grades

Open type / standard sealed / reinforced sealed options, adapt dust-proof, waterproof and harsh workshop environments.

4. High Interchangeability

Strictly follow Stieber & GMN industrial standards, 1:1 replacement for imported original units, no modification needed.

5. Low Noise & High Stability

Precision ground raceway and high-precision rolling elements, smooth operation, low friction, long fatigue life.

6. Complete Series Specifications

Full stock of ASNU, NFS, TFS, FDN, FRN, CSK, HF sizes, support OEM customization and private logo service.

Main Applications

• Reducer & Gearbox Equipment: One-way backstop and anti-reverse protection

• Conveyor & Logistics Machinery: Belt anti-backward slipping device

• Packaging & Printing Machine: Intermittent indexing and overrunning transmission

• Textile & Woodworking Machinery: Directional drive separation

• Agricultural Machinery: Overrunning clutch power separation

• Automation Transmission Line: Speed difference matching and one-way drive control
