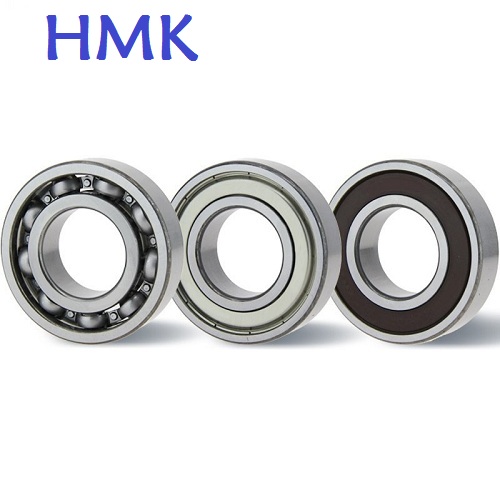

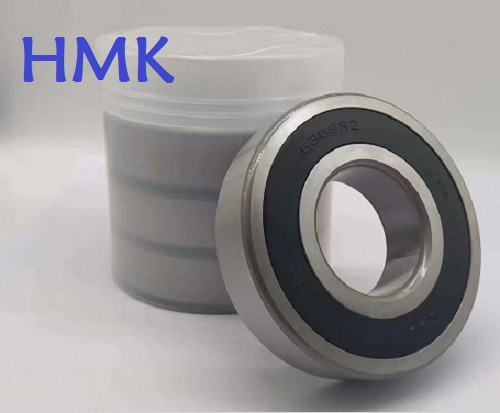

Single Rolw Deep groove ball bearing

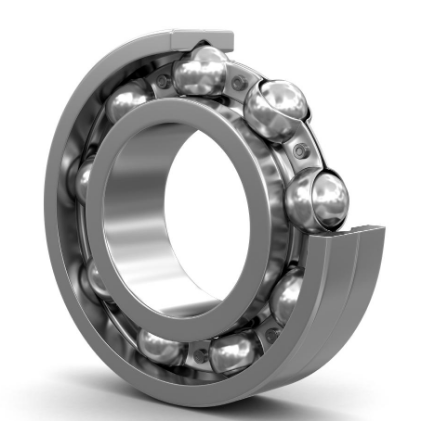

Single row deep groove ball bearing is the most common bearing type. It features simple structure, stable running and low operating friction.

Deep groove ball bearings come in various sizes and designs, suitable for different operating conditions and requirements.

They can accommodate moderate misalignment of shafts.

Specifications of Deep Groove Ball Bearings

Bearing NO.	ID(mm)	OD(mm)	B(mm)	Rated Dynamic load Cr(KN)	Rated Static load Cor(KN)	Greese	Oil	Weignt (kg)
6002	15	32	9	5.6	2.85	23000	27000	0.03
6003	17	35	10	6	3.25	21000	25000	0.039
6004	20	42	12	9.4	5.05	17000	21000	0.069
6005	25	47	12	10.1	5.85	15000	18000	0.08
6006	30	55	13	13.2	8.25	13000	15000	0.116
6007	35	62	14	15.9	10.3	11000	13000	0.155
6008	40	68	15	16.7	11.5	10000	121000	0.192
6009	45	75	16	21	15.1	9200	1100	0.245
6010	50	80	16	21.8	16.6	8400	9900	0.261
6011	55	90	18	28.3	21.2	7600	8900	0.385
6012	560	95	18	29.4	23.2	7100	8400	0.415
6013	65	100	18	30.5	25.2	6600	7800	0.435
6014	70	110	20	38.1	30.9	6100	7200	0.602
6015	75	115	20	39.5	33.5	5700	6800	0.638
6016	80	125	22	47.6	39.8	5300	6300	0.85
6017	85	130	22	49.5	43.1	5000	5900	0.89
6018	90	140	24	58.2	49.7	4700	5600	1.16
6019	95	145	24	60.4	53.9	4400	5200	1.21
6020	100	150	24	60.2	54.2	4300	5100	1.25
6021	105	160	26	72.3	65.8	4000	4700	1.59
6022	110	170	28	82	73	3800	4500	1.96
6024	120	180	28	85	79.3	3600	4200	2.07
6026	130	200	33	106	101	3200	3800	3.16
6028	140	210	33	110	109	3000	3600	3.55
6030	150	225	35	125	126	2800	3300	4.22
6032	160	240	38	136	135	2600	3000	5.22
6034	170	260	42	161	161	2400	2800	6.8
6036	180	280	46	182	194	2200	2600	10.3
6202	15	35	11	7.7	3.8	20000	24000	0.05
6203	17	40	12	9.6	4.8	17000	21000	0.07
6204	20	47	14	13	7	15000	17000	0.11
6205	25	52	15	14	7.9	13000	15000	0.13
6206	30	62	16	20	11	11000	13000	0.19
6207	35	72	17	26	15	9200	11000	0.29
6208	40	80	18	29	18	8300	10000	0.37
6209	45	85	19	33	20	7700	9200	0.41
6210	50	90	20	35	23	7100	8500	0.5
6211	55	100	21	43.5	29.2	6300	7600	0.61
6212	60	110	22	52.4	36.2	5700	6900	0.08
6213	65	120	23	57	40	5400	6400	0.99
6214	70	125	24	62	44.1	5100	6000	1.07
6215	75	130	25	67	48	4800	5800	1.18
6216	80	140	26	73	53	4500	5400	1.4
6217	85	150	28	84	62	4200	5000	1.79
6218	90	160	30	96	72	3900	4700	2.15
6219	95	170	32	109	82	3700	4400	2.6
6220	100	180	34	122	93.1	3500	4200	3.14
6221	105	190	36	133	105	3300	3900	3.7
6222	110	200	38	144	117	3100	3700	4.36
6224	120	215	40	155	131	2900	3400	5.15
6226	130	230	40	167	145	2700	3200	5.82
6228	140	250	42	166	150	2400	2900	7.45
6230	150	270	45	176	168	2200	2700	9.41
